Tesla Model 3 Front Control Arm Kit, 6-Piece (2018.6–2023)
Tesla Model 3 Front Control Arm Kit, 6-Piece (2018.6–2023)
Couldn't load pickup availability
Six complete front arms for Model 3 (June 2018–2023)
This is a front-only refresh: both upper arms, both straight lower arms, and both curved “banana” arms. It is not an upper-arm-only kit, not a full-car kit, and it does not fit Highland (2024+) or Model Y.

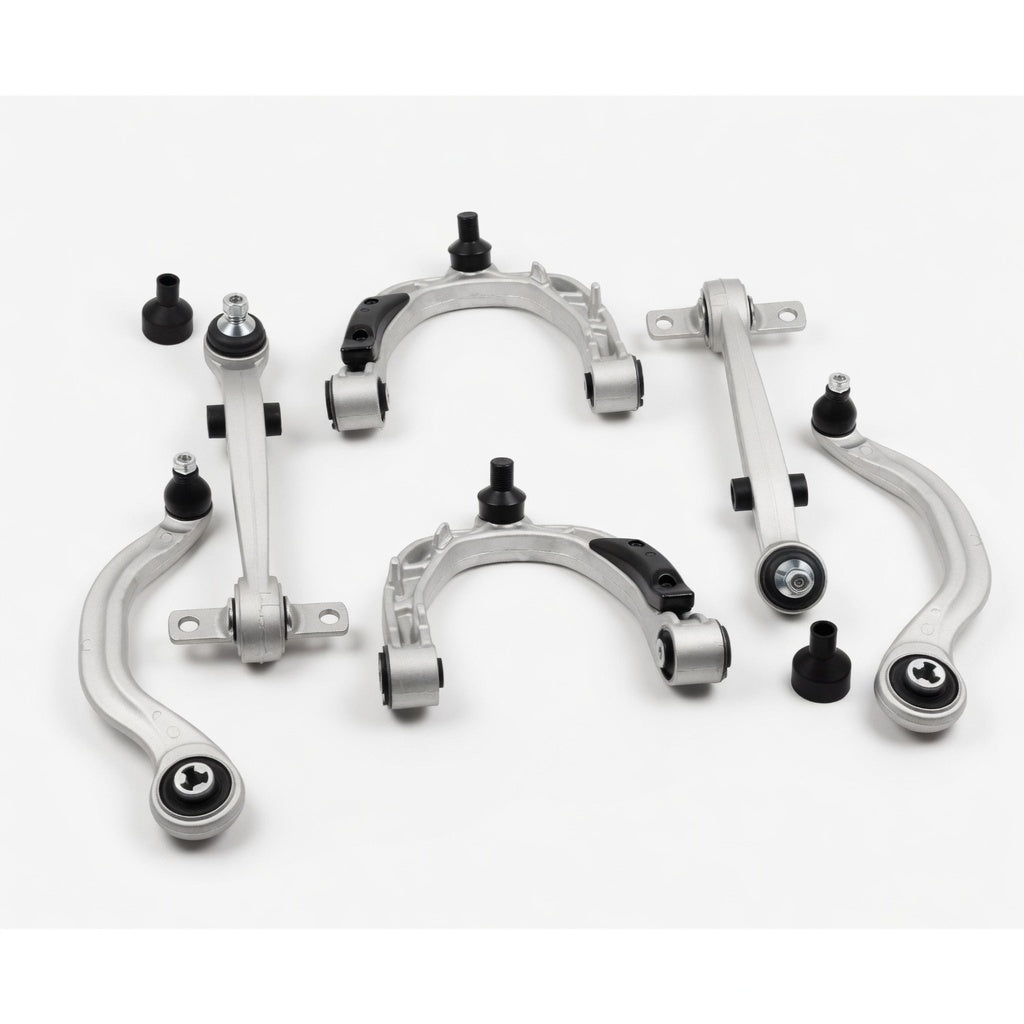

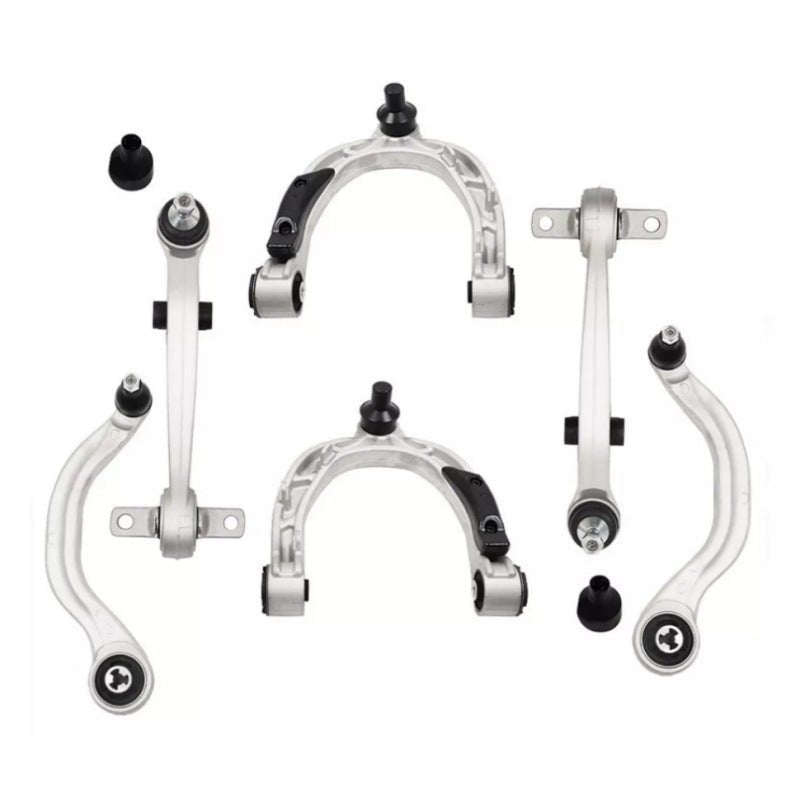

- 6 complete arm assemblies with ball joints and bushings already pressed in
- Aftermarket parts built to the Tesla OE numbers below — not a Tesla Service Center boxed original unless the packing says so
- Bolts, alignment, rear arms, sway-bar links, and tie rods are not included
- Shop time is typically 2–4 hours plus a 4-wheel alignment. A lift is expected
- Uninstalled quality issues: 30-day exchange. Installed parts are not returnable for change of mind — see our

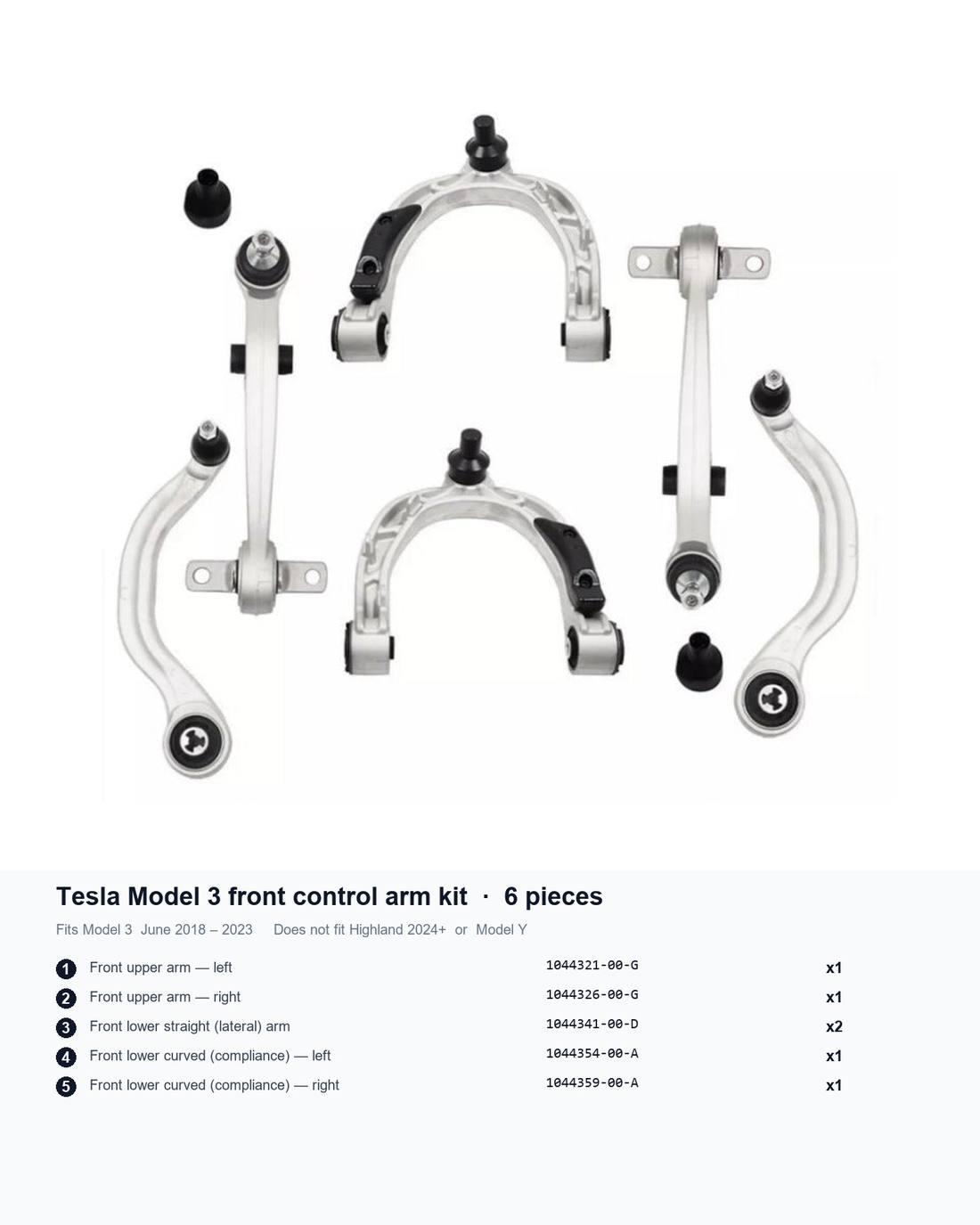

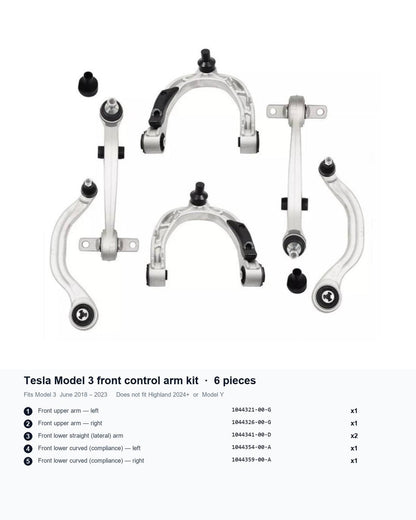

What's in the box
Match these numbers to the stamp on your arms. Photos may also show two small dust caps; those are extras, not extra arms.
| Qty | Part (plain name) | OE on this kit | Also fits if your stamp is |
|---|---|---|---|

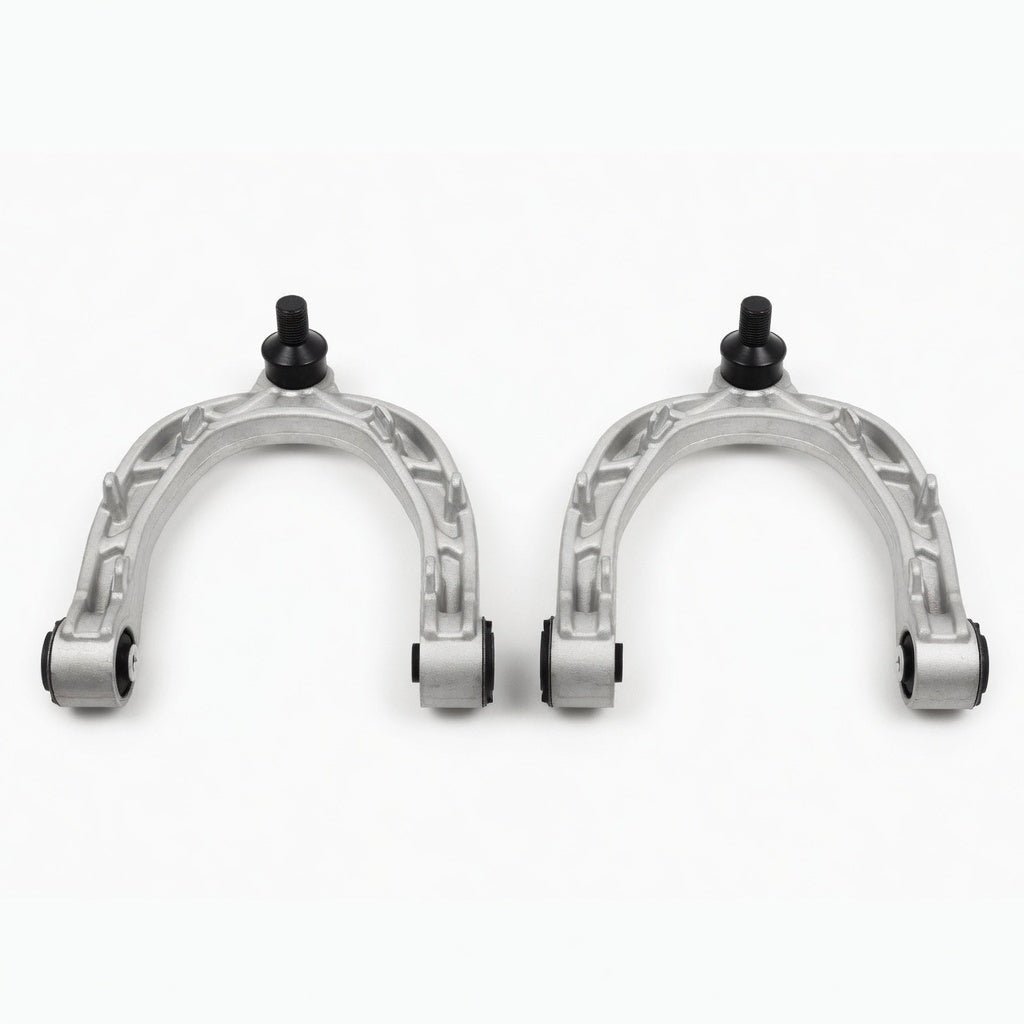

| 1 | Front upper arm, left | 1044321-00-G | 1044321-00-E / F / H (same arm, earlier/later letter). Not J. |
| 1 | Front upper arm, right | 1044326-00-G | 1044326-00-E / F / H. Not J. |

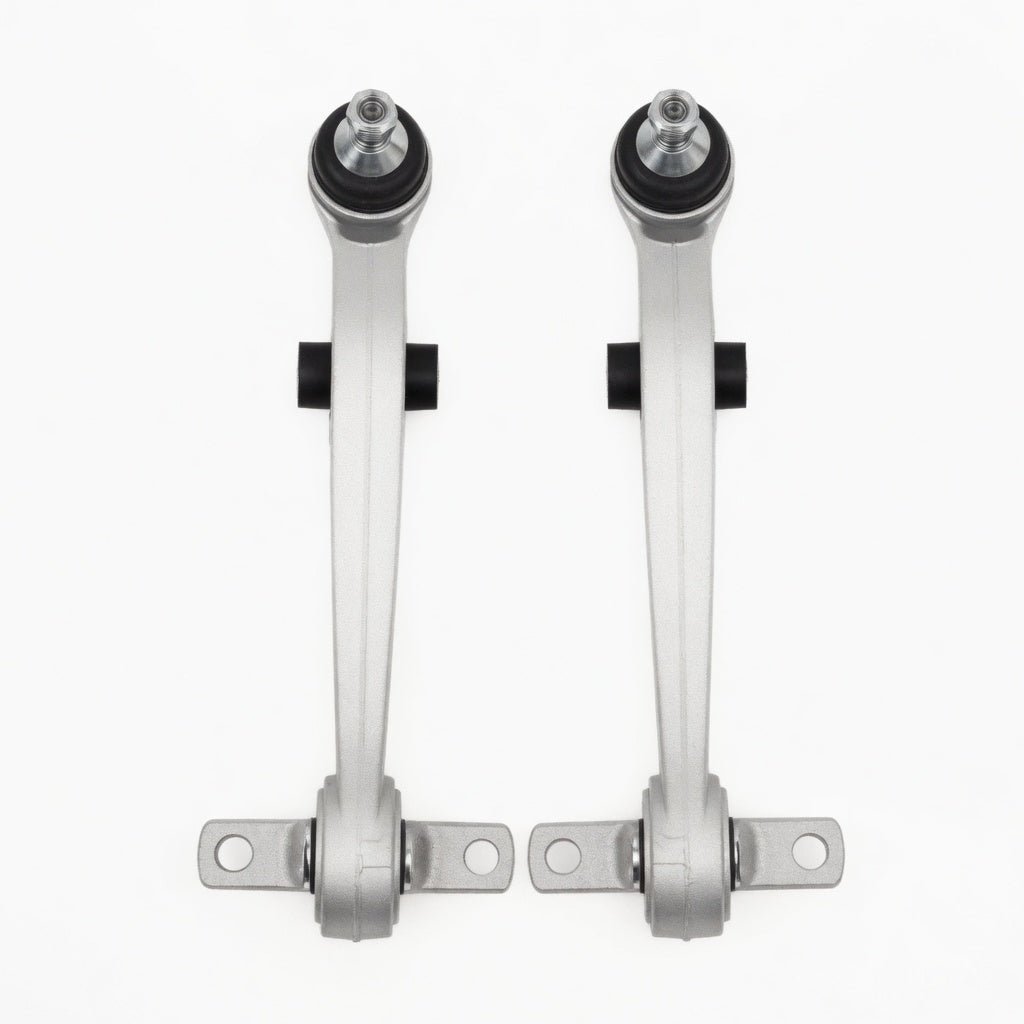

| 2 | Front lower straight arm (same part left or right) | 1044341-00-D | 1044341-00-E (later letter of the same straight arm) |
| 1 | Front lower curved / banana arm, left | 1044354-00-A | Early cars may show 1044351-00-C — photo first |
| 1 | Front lower curved / banana arm, right | 1044359-00-A | Early cars may show 1044356-00-C — photo first |
Will this fit?
Look at the stamp on the arms. Year helps, stamp decides. Same OE worldwide for this generation — no US / EU / China split.
Model 3 · June 2018–2023
RWD, AWD, and Performance when stamps match the table, including straight-arm 1044341-00-E and upper letters E / F / H.
Early car or 2188 banana arm
Model 3 before June 2018 (curved arms often 1044351 / 1044356), or Tesla already fitted cold-climate / later arms 2188354-10-B / 2188359-10-B. Email stamp + VIN to .
Highland or Model Y
Highland 2024+ uses 1344… arms and upper -00-J. Model Y uses a different straight arm (often 1188341-00-C) — use the .
Install notes
If you torque the inner bushing bolts with the wheels hanging, the new rubber is pre-twisted and can tear early. Set ride height, then torque. Replace one-time lock nuts. Then a 4-wheel alignment.
| Joint | Typical Tesla spec | Note |
|---|---|---|
| Lower arms to knuckle | 180 Nm | Replace the lock nut |
| Upper arm to body | 35 Nm (small) / 62 Nm (large) | From Tesla Model 3 service procedure |
| Lower arms to subframe | See current service manual | Value depends on the bolt (NA vs EU/APAC parts differ). Always at ride height. |
Most independent shops book 2–4 hours plus a 4-wheel alignment. A lift is expected. Torque figures above are from Tesla service information for 2017–2023 Model 3 — confirm on the manual for your VIN before you tighten anything.
Why replace the set
Clunks, wander, inner tire wear
Worn front bushings and ball joints let the wheel move under braking and over bumps. Refreshing left and right together keeps the geometry even.
No press required
These are complete arms. If only the banana-arm rubber is torn and the metal is straight, the cheaper route is the (press needed).
Need a different part?
FAQ
Is this only the upper arms?
DetailsHighland 2024+ or Model Y?
DetailsMy straight arm says 1044341-00-E, not D. My upper says F or H, not G.
DetailsTesla already put 2188 banana arms on my 2019–2023 car.
DetailsPerformance / AWD / RWD?
DetailsAre these genuine Tesla-boxed parts?
DetailsBolts and alignment?
DetailsHow long does install take?
DetailsWarranty?
Details
